Ref: MIC-25

Mikrometer Schraube

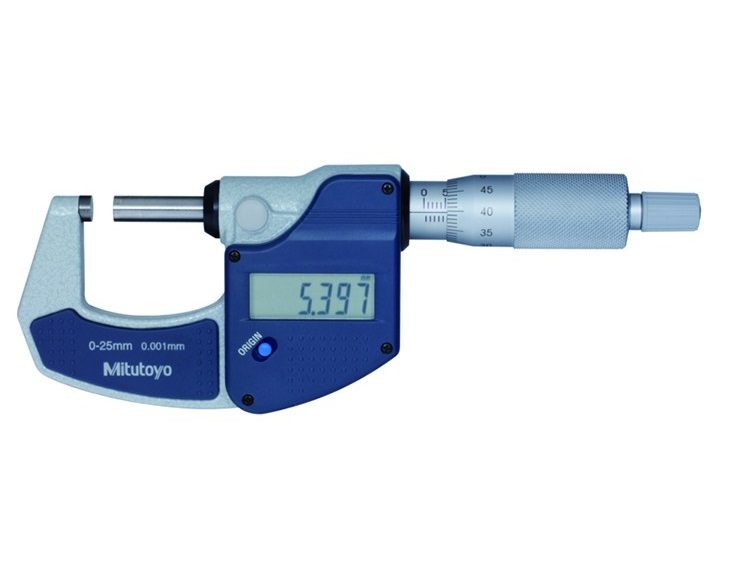

The MITUTOYO 293-831-30 is a 25mm Digimatic Micrometre, simple design, provided with an origin-set button for easy origin setting from the famous Mitutoyo Corporation.
Increased operability thanks to extra large LCD.
Equipped with ratchet stop for constant measuring force and carbide measuring faces.
Zero setting – A brief press on the ORIGIN button sets display to zero at the current spindle position (zero-setting), which allows easy comparison measurement.
Auto power ON/OFF, the reading on the LCD disappears after this instrument is idle for about 20 minutes, but the reading is retained, turning the spindle causes the reading on the LCD to reappear.

Friction thimble constant-force device
±2µm Accuracy
0.001mm Resolution
0.3µm/0.000012″ Flatness
2µm/0.00008″ Parallelism

Capacity : 0-25 mm (standard apparatus for chocolate)
Weight: 275 g

Supplied with its box, setting tool, battery, operating instructions and certificate of inspection.

PREIS:  254 EUR + MwSt. + Versand

Mikrometer Schraube

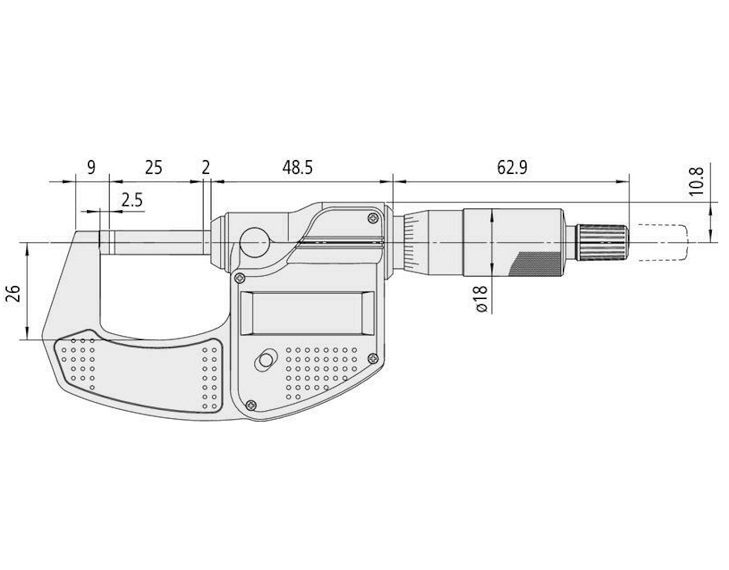

Mikrometer Schraube MIC Size
